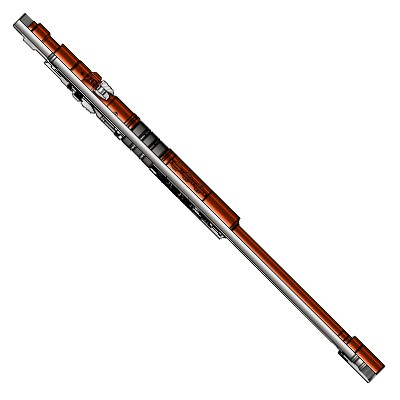

VR-D Ob Chav Grip Retrievable Packer

CovVR-D Ob Chav Grip Retrievable Packeryog ib tug neeg kho tshuab teeb packer uas tuaj yeem tiv taus siab ntawm ob sab saum toj thiab hauv qab. Nws yog teem los ntawm rotating nws ib lub hlis twg tig thiab ces thov qhov hnyav rau lub packer. Qhov yooj yim peb lub hlis twg tig teeb tsa mechanism tso cai rau ntau lub voj voog ntawm kev teeb tsa thiab tsis muaj teeb meem hauv ib qho kev khiav, ua rau nws zoo meej rau kev sim casing, stimulation, thiab kev kho mob daim ntawv thov nyob rau hauv ib tug ob-grip configuration.



① Lub rooj zaum ruaj ntseg:VR-D Ob Chav Grip Retrievable Packerteeb ruaj ntseg nyob rau hauv tej hardness ntawm casing, nrog rau cov qib hwm, kom ntseeg tau tias muaj kev ruaj ntseg foob tsis hais cov khoom casing.

② Txo Hnav: Lub hydraulic tuav khawm khawm, uas muaj qhov loj hauv txoj hauv kev uas nyob hauv qab ntawm lub viav vias valve, pab txo qis cov ntsiab lus swabbing thiab khawm wicker dulling, yog li ua kom lub neej ntev ntawm cov khoom ntim khoom.

③Surface Control: Ib qho chaw tswj kev sib xyaw ua ke bypass thiab sib npaug ntawm lub valve tso cai rau kev tswj hwm ntawm qhov downhole pressures thiab ntws los ntawm qhov chaw, txhim kho kev nyab xeeb thiab kev tswj xyuas haujlwm.

④ Kev Ua Tau Zoo: Lub raj lub siab ua kom lub cev muaj zog yog feem ntau suav nrog txhawm rau tshem tawm qhov xav tau ntau dhau qhov yuav tsum tau ua kom hnyav, uas ua rau cov txheej txheem teeb tsa yooj yim thiab txo qhov kev pheej hmoo ntawm cov khoom puas.

⑤ Advanced Packing System: Peb-thooj packing element system txhawb nqa lub peev xwm los tsim kom muaj kev sib khi ruaj khov hauv lub casing.

⑥ Txhim kho Anchoring: Rocker type slips muab kev tuav zoo dua thiab kev sib khi, txhim kho cov ntim khoom tuav hauv qhov dej.





①Retrievable Design: Lub packer yog tsim los rau retrievable, uas txhais tau tias nws yuav raug tshem tawm los yog repositioned raws li xav tau yam tsis tau rub tag nrho cov tubing ntau lawm. Qhov no feature yog qhov tseem ceeb heev rau kev cuam tshuam zoo thiab kev saib xyuas kev ua haujlwm.

②Double Grip Mechanism: Raws li lub npe qhia, MR-D packer muaj ob txoj kev tuav tswj, uas txhais tau hais tias nws muaj peev xwm tuav thiab kaw cov casing nyob rau hauv ob qhov chaw sib cais. Qhov no txhim kho lub ntim ntim lub peev xwm sealing thiab muab kev ruaj ntseg ntau dua nyob rau hauv lub qhov dej.

③ Mechanical Setting: Lub MR-D packer yog teem rau mechanically, feem ntau yog siv lub quarter tig thiab qhov hnyav rau lub ntim. Qhov kev teeb tsa no tso cai rau ntau lub voj voog ntawm kev teeb tsa thiab tsis teeb tsa hauv ib qho kev khiav haujlwm, uas yog qhov zoo rau cov ntawv thov xws li kev sim casing, stimulation, thiab kev kho mob.



Casing OD	Casing Wt.	Kev teeb tsa Ntau yam	Kev teeb tsa Ntau yam	Tool O.D	Tool I.D	Kev sib txuas xov
(In.)	(lbs/ft)	Min(In.)	Max(In.)	(In.)	(In.)
4 1/2	9.5-13.5	3.91	4.09	3.77	1.90	2-3/8"-8RD EU los yog 2-7/8"-8RD EU
5	15-18	4.25	4.408	4.13
5	11.5-15	4.408	4.56	4.25
5-1/2"	20-23	4.625	4.778	4.5	2.00
	15.5-20	4.778	4.95	4.64
	13-15.5	4.95	5.19	4.78
6-5/8"	34	5.561	5.609	5.41
	28-32	5.61	5.791	5.48
	24-28	5.791	5.921	5.48
7"	32-35	5.922	6.135	5.78	2.42	2-7/8"-8RD EU los yog 3-1/2"-8RD EU
	26-29	6.136	6.276	5.97
	20-26	6.276	6.456	6.08
	17-20	6.454	6.578	6.27
7-5/8"	33.7-39	6.579	6.797	6.45
	24-29.7	6.798	7.025	6.67
	20-24	7.025	7.125	6.81
8-5/8"	44-49	7.511	7.687	7.31	3.47	2-7/8"-8RD EU los yog 3-1/2"-8RD EU
	32-40	7.688	7.921	7.53
	20-28	7.922	8.191	7.78
9-5/8"	47-53.5	8.343	8.681	8.22	3.94
	40-47	8.681	8.835	8.44
	29.3-36	8.836	9.063	8.59





① Kev Ua tiav Zoo: Siv los cais cov cheeb tsam sib txawv hauv lub qhov dej kom tsis txhob hla dhau thiab xyuas kom txhua cheeb tsam tuaj yeem tswj hwm nws tus kheej.

② Kev tsim khoom: Muab tso rau hauv kev tsim khoom los tswj cov dej ntws los ntawm cov cheeb tsam tshwj xeeb thiab tiv thaiv cov kav dej ntau lawm.

③ Stimulation: Siv thaum lub sij hawm zoo stimulation kev kho mob xws li acidizing los yog fracturing cais thaj chaw kho mob thiab siv lub siab zoo.

④ Kev Ntsuas: Siv rau kev ntsuas kev ntseeg siab lossis kev sim siab tsim qhov twg yuav tsum muaj lub foob ib ntus los ntsuas cov xwm txheej zoo.

⑤ Casing Size Compatibility: Cov cuab yeej, qhov no, lubMR-D Ob Chav Grip Retrievable Packer, tuaj yeem siv tau nrog cov roj av casings uas muaj ib txoj kab uas hla (OD) xws li ntawm 4 1/2 ntiv mus rau 9 5/8 ntiv tes. Qhov no qhia tau hais tias Vigor muaj ntau qhov sib txawv ntawm cov ntim khoom kom haum rau ntau qhov ntev ntawm lub casing.





Xav tau ib lub hnab ntim khoom rov qab uas tuaj yeem hloov mus rau ntau qhov ntau thiab tsawg thiab lav lub foob zoo? Mus saib Vigor's MR-D Packer, tsim los rau qhov loj me ntawm 4 1/2" txog 9 5/8". Peb lub hnab ntim khoom yog qhov kev daws teeb meem rau kev ua tiav, tsim tawm, txhawb nqa, thiab sim cov ntawv thov uas muaj kev ntseeg siab thiab yoog raws yog qhov tseem ceeb.

Hu rau peb pab neeg muag khoom los tham txog koj cov kev xav tau tshwj xeeb hauv dej.
