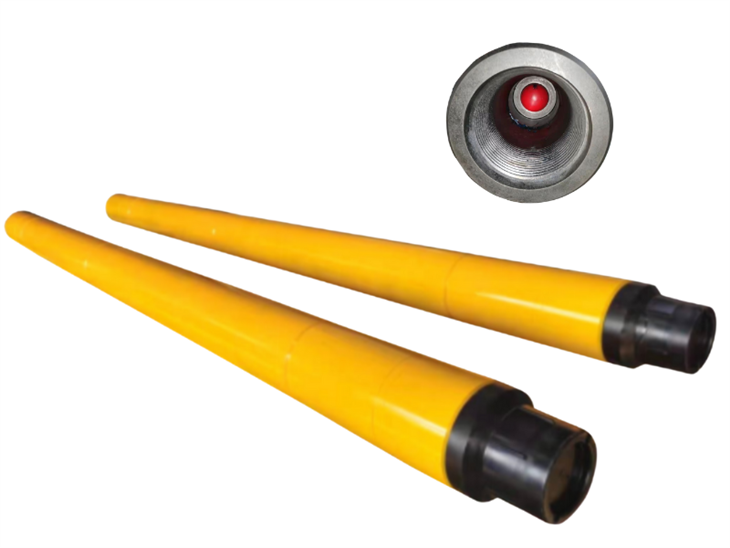

Unlimited-Circulation Bypass Valve (UCBV)
Vigor's Unlimited-Circulation Bypass Valve (UCBV) yog cov cuab yeej tshiab tiam tshiab nrog ntau qhov qhib kev ncig uas tuaj yeem ua kom tsis muaj kev txwv "rau" thiab "tawm" los ntawm ib lub pob poob uas hloov cov dej ntws ntws los ntawm ID ntawm txoj hlua. (tsis-bypass) mus rau annulus (bypass).
Unlimited-Circulation Bypass Valve (UCBV) siv rau:
1. Tiv thaiv hauv qab lub qhov drilling sib dhos thaum ntsaws thiab txhaj cov kua qaub thiab cov cement slurry
2.Cuttings tu, tshwj xeeb tshaj yog haum rau kev ncav cuag thiab kab rov tav Wells
3.Increase reaming ceev thaum loj lub qhov
4.Txhim kho qhov tu thiab nti tu thaum lub sij hawm coring
Hauj lwm lawm
Nta
● Siv rau hauv cov qhov dej sib txawv thiab kab rov tav.
● Tiv thaiv kom tsis txhob khawb av nkos thiab nce kev ncig.
● Txo lub sijhawm drilling.
● MWD, LWD, thiab Turbine tiv thaiv zoo dua.
● Ob qhov chaw nres nkoj circulating zoo heev txo qhov kev pheej hmoo ntawm kev ntsaws.
● Rau qhib thiab kaw ua haujlwm raws li tus qauv. Tus lej no tuaj yeem muab tau ob npaug ntawm kev thov.
Specification
- CovUnlimited-Circulation Bypass Valve (UCBV)yog cov cuab yeej siv tau zoo tsim los siv rau hauv High Angle thiab Kab rov tav qhov dej. Nws ua haujlwm los ntawm lub pob hla, ua rau lub rooj catcher tsis tsim nyog rau kev ua kom lub cuab yeej.
- Tag nrho peb cov cuab yeej tuaj nruab nrog ob lub chaw nres nkoj loj loj raws li tus qauv, txo qhov kev pheej hmoo ntawm kev ntsaws.
- UCBV yog ib yam ntawm nws lub peev xwm tso cai rau tag nrho TFA Reverse Circulation.
- Nws cov qauv tsim tshwj xeeb ua kom ntseeg tau tias cov chaw nres nkoj ntws tseem qhib ua ntej lub pob qhib mus txog lub rooj zaum catcher, uas tiv thaiv kev sib tsoo tsis sib xws thiab qhov cuam tshuam rau cov pob tawb catcher puas tsuaj.
- Lub Unlimited-Circulation Bypass Valve (UCBV) tuaj yeem tso rau hauv qhov qhib qhib, tso cai rau nws khiav mus rau hauv qhov zoo.
- Peb muab qhov tsawg kawg nkaus ntawm rau tus qauv qhib thiab kaw ua haujlwm nrog tag nrho peb cov cuab yeej. Txawm li cas los xij, peb tuaj yeem muab ob npaug rau tus nqi raws li kev thov.
Technical Parameters
|
Tool OD |
4.75＂ (121 hli) |
6.50＂ (165 hli) |
7.00＂ (178 hli) |
8.00＂ (203 hli) |
|
Kev sib txuas |
NC 38 |
NC50 |
NC50 |
6-5/8 REG |
|
Tool ID |
1.25＂ (31.8 hli) |
1.875＂ (47.6 hli) |
1.875＂ (47.6 hli) |
2.375＂ (60.3 hli) |
|
Bypass Chaw nres nkoj ID |
2×0.75＂ 2 × 19mm |
2×0.97＂ 2 × 24.6 hli |
2×0.97＂ 2 × 24.6 hli |
2×1.38＂ 2 × 35mm |
|
Tsis-Bypass Port ID |
2×0.70＂ 2 × 17.8 hli |
2×0.96＂ 2 × 24.4 hli |
2×0.96＂ 2 × 24.4 hli |
2×1.13＂ 2 × 28.7 hli |
|
Standard Activiting Ball OD |
1.63＂ 41.3mm ib |
2.25＂ 5 7,2mm |
2.25＂ 5 7,2mm |
2. 5＂ 6 3,5mm |
|
Tensile Yeild |
500, 000lbs (2222.5kN) |
1,250, 000lbs (5556.3kN) |
1,250, 000lbs (5556.3kN) |
1,800, 000lbs (8001kN) |
|
Torsional Yeild |
30, 000ft-lbs (40.7 kNm.) |
50, 000ft-lbs (67.8 kNm.) |
50, 000ft-lbs (67.8 kNm.) |
110, 000ft-lbs (149 kNm.) |
|
Max. Pom zoo ua haujlwm Torque |
18, 000ft-lbs (24.4 kNm.) |
30, 000ft-lbs (40.7 kNm.) |
30, 000ft-lbs (40.7 kNm.) |
60, 000ft-lbs (81.3kNm.) |
|
Max. Tso cai Flow Rate |
7 00gpm (2650L/M) |
9 00gpm (3401L/M) |
9 00gpm (3401L/M) |
1,400 gpm ib (5299L/M) |
|
Activation Flow Rate (Dej) |
230gpm ua (871L/M) |
4 30gpm (1628L/M) |
4 30gpm (1628L/M) |
5 80gpm (2195L/M) |
|
Lub xub pwg mus rau lub xub pwg ntev |
82.5 × 2096 hli |
81.125 × 2060mm |
81.125 × 2060mm |
96 × 2438mm |
FAQ
Q: Kuv yuav tswj thiab siv cov cuab yeej siv li cas?
Q: Accessry pob tuaj yeem siv tau ntau zaus?
Cov duab xa tuaj
Peb cov pob khoom yog nruj thiab yooj yim rau kev khaws cia, peb paub tseeb tias Unlimited-Circulation Bypass Valve (UCBV) muaj kev nyab xeeb mus txog cov neeg siv khoom txawm tias tom qab ntau txhiab mais kev mus los ntev los ntawm hiav txwv thiab tsheb thauj khoom, peb kuj muaj peb cov khoom muag uas tuaj yeem ua tau raws li cov kev xav tau ntawm cov khoom loj. thiab ceev xaj los ntawm cov neeg siv khoom.
Cim npe nrov: Unlimited-Circulation Bypass Valve (UCBV), Circulating Sub, Bypass Tool, Bypass Sub
